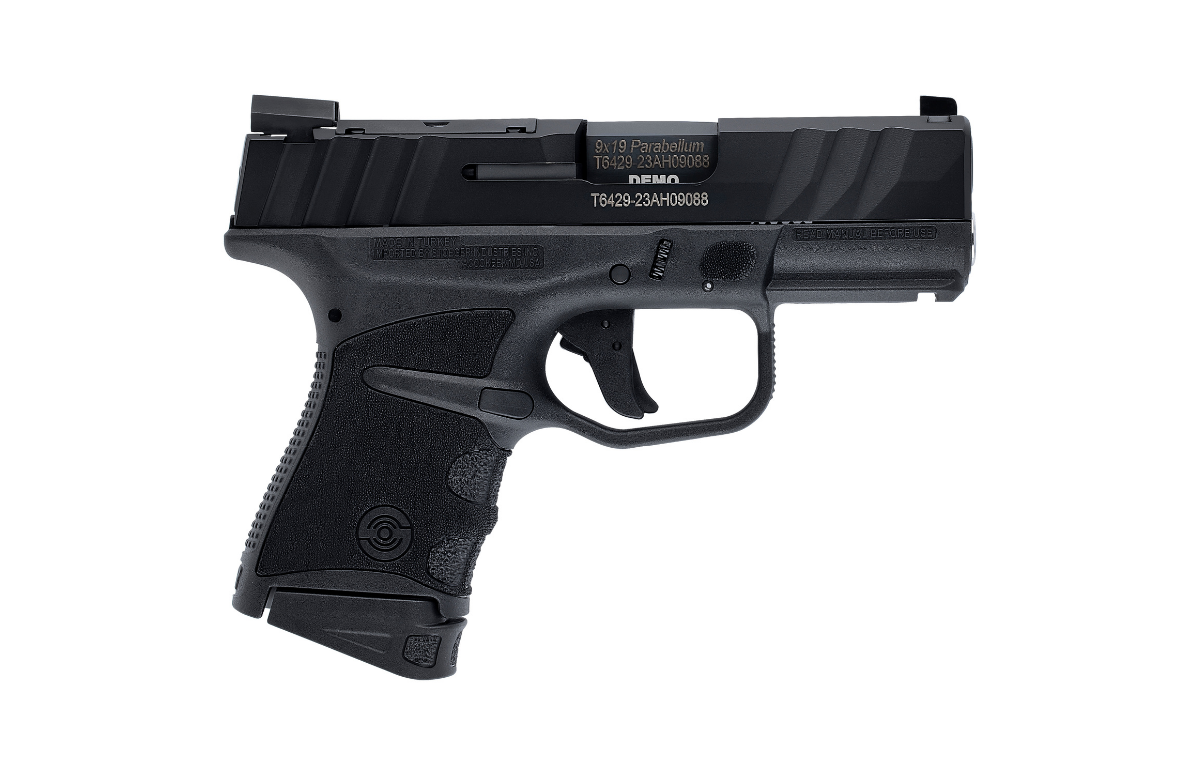

STR-9MC RED-DOT

Item Number :

DESCRIPTION

The Stoeger STR-9MC RD Micro Compact model is the smallest and lightest domestic model in its class, as well as the gun with the longest barrel length.

Stoeger STR-9MC RD (Optic Ready) models have a machined area on the cover ready to mount many optical devices.

The trigger is outstanding and there are several sight options to choose from.

Thanks to its aggressive cover processing and safe trigger design, it ensures safe and secure use in all weather conditions.

STR-9MC RD is a safe, fast and comfortable gun thanks to its dimensions and features.

It has an aggressive and striking design.

DOWNLOAD BROCHURE

DOWNLOAD USER MANUAL

RUGGED AND RELIABLE PROTECTION. EVERYDAY THOUGH, MEETS EVERYDAY CARRY.

The complete features makes the STR-9 pistol an excellent option either for defense, for personal security or law enforcement services.

SAFETY & SPEED

Safe-Action Flat Trigger.

Trigger Pull = 2.5kg maximum.

OPTICAL READY COMPATIBLE COVER

Stoeger STR-9MC RD ( Optic Ready ) models have a machined area on the cover that is ready to mount most optical devices on the market.

CERAKOTE COATING

Special treatment includes ceramic particles which increases the solidity and durability.

3 DOT- SIGHTS

Dovetailed, drift adjustable 3-dot sights are quick to acquire in varied light conditions. The outfitted 3-dot sight system features snag-resistant edges to ensure smooth draws and holstering.

TRIGGER & SAFETY

The crisp, clean-breaking trigger with internal safety gives a reliable shooting experience.

REVERSIBLE MAGAZINE RELEASE

Change the magazine release to left or right operation to fit your shooting style.

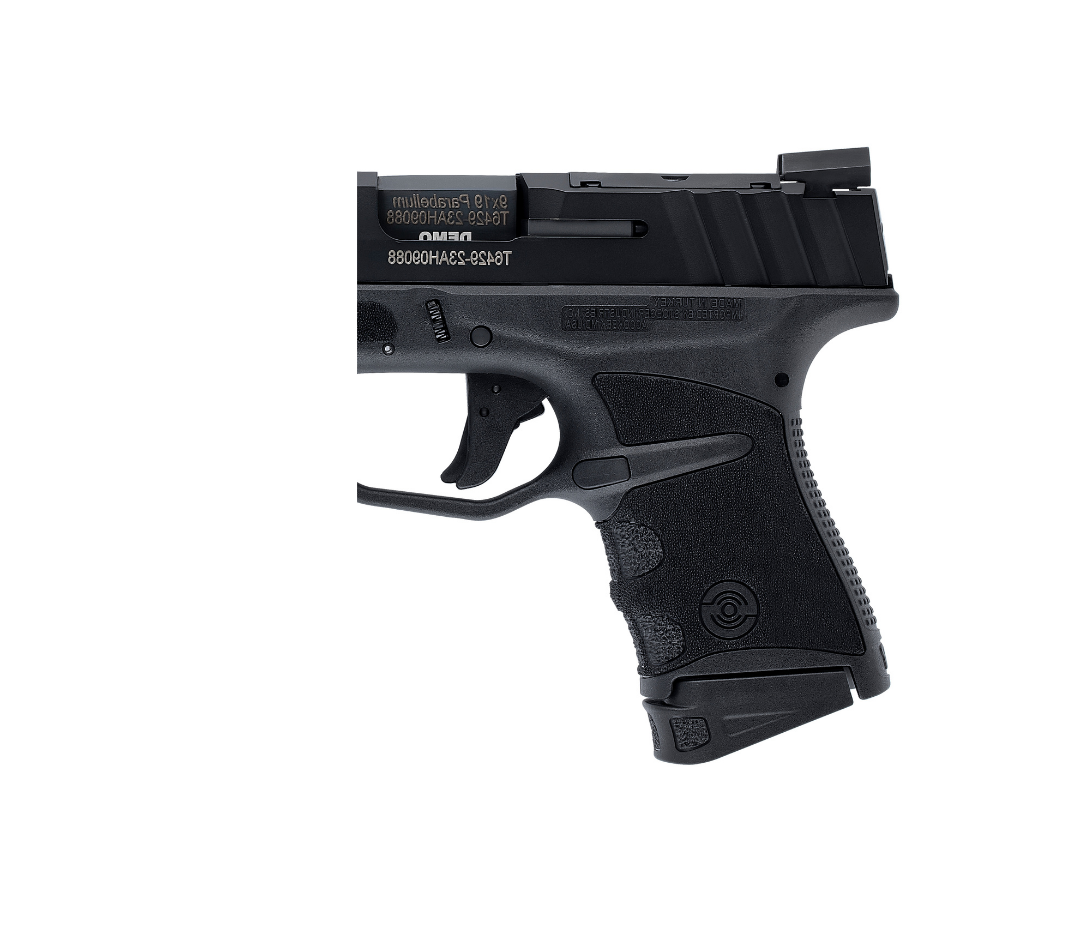

INTERCHANGEABLE BACKSTRAP

Tailor the STR-9's fit to your hand by using one of the three interchangeable backstraps. A comfortable, custom fit will help get you on target more quickly.

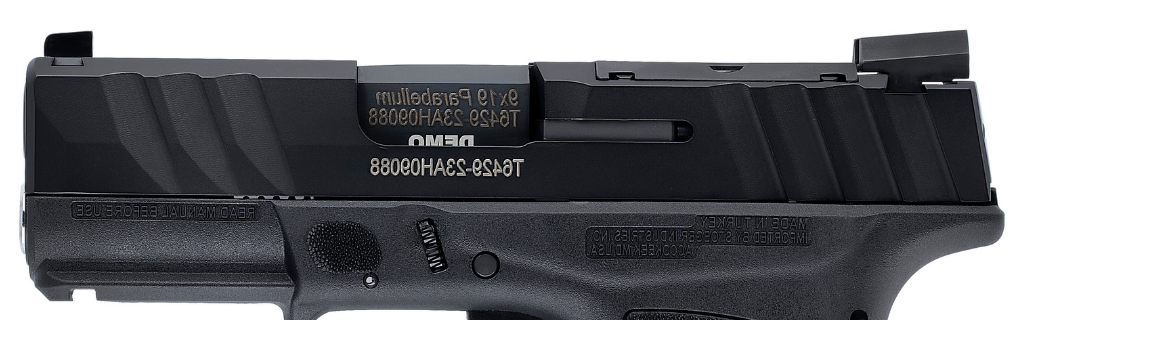

SLIDE SERRATIONS

Aggressive slide serrations ensure a firm grip in any weather for rapid cycling of the STR-9 with or without gloves in any weather conditions.

LOW BORE AXIS

The low bore axis reduces muzzle jump to get you back on target quickly after each shot.

TECHNICIAL SPECIFICATIONS

Dimensions
Caliber	9x19.
Overall length	155 mm.
Barrel length	83,5 mm.
Barrel rifling	6 right grooves, pitch 250mm.
Overall width	27,5 mm.
Overall height	108 mm.
Sight radius	140 mm.
Distance between barrel axis and upper back grip	19 mm. / 0,75 inc.
Magazine capacity	11 - 13
Weight with empty magazine	530±5 gr.
Operation
Operation	Semi automatic.
Action	Striker fired.
Trigger travel	7,5 mm. / 0,3 inc.
Trigger reset	2,5 mm. / 0,1 inc.
Trigger pull	Max. 2.5kg
Length of pull	65±1 mm. / 2,76 inc.
Special Features
Internal chassy	Inserted stainless steel front and back rail on the frame
Slide and barrel	Cold hammered barrel, slide and barrel high strength alloy steel with nitriding surface treatment.
Sights	Removable and adjustable, dowtail to slide. Standard 3 dot system.
Frame	Technopolymer, reinforced with glass fiber.
Picatinny	Mil Std 1913.
Backstraps	Small 29x30mm / 1,14x1,18inc.
	Medium 30x32mm / 1,18x1,26inc.
	Large 34x34mm / 1,34x1,34inc.
Trigger guard	Combat like.
Disassembly	pulling the trigger.
Magazine release button	reversable left/right
Hold open	only left
Safeties	Automatic firing pin safety and trigger safety.
Loaded chamber indicator	on slide as standard.
